DZ-630L

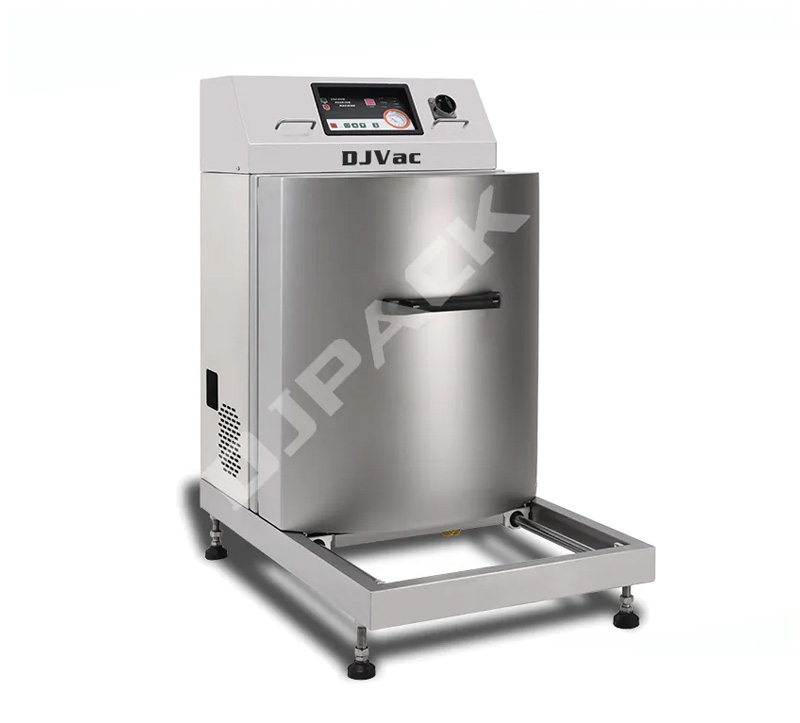

Vertical Type Vacuum Packaging Machine

DZ-630L Vertical Type Vacuum Packaging Machines Series constructed of a high-quality stainless steel. It's suitable for vacuum-packed in vertically standing pouches. It's easy to operate, clean and maintain. The gas flushing function is option.

Chamber Dimensions(mm):

670×300×790

Sealer Dimension(mm):

630×8

Production Cycle(times/min):

1-2

Select variant:

DZ-500L DZ-600L DZ-630L

Get a quote

Download

Description
Technical characters
Technology specifications
Inquiry

Description

Technical characters

Control System: The PC control panel provides several control modes for user's selection.
Material of Main Structure: 304 stainless steel.
"V" Lid Gasket: The "V" shaped vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the machine in routine work. The compression and wearing resistance of the material extends the service life of the lid gasket and reduce its changing frequency.
Heavy Duty Casters (With Barke): The heavy duty casters (with brake) on the machine features superior load bearing performance, so that the user may move the machine with ease.
Electrical requirement and plug could be custom according to customer requirement.

Technology specifications

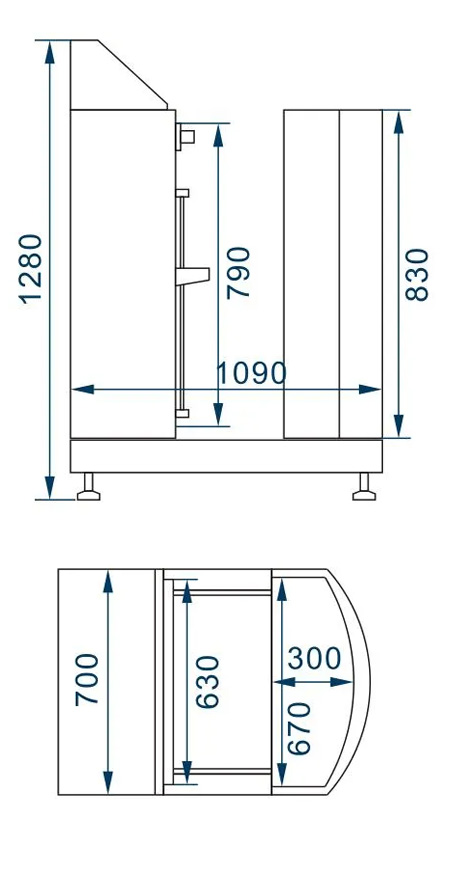

Model	DZ-630L
Machine Dimensions(mm)	1090 × 700 × 1280
Chamber Dimensions(mm)	670 × 300 × 790
Sealer Dimensions(mm)	630 × 8
Vacuum Pump(m3/h)	40
Power Consumption(kw)	1.1
Electrical Requirement(v/hz)	220/380/50
Production Cycle(times/min)	1-2
Net Weight(kg)	221
Gross Weight(kg)	272
Shipping Dimensions(mm)	1180 × 760 × 1410
