DZ-600L

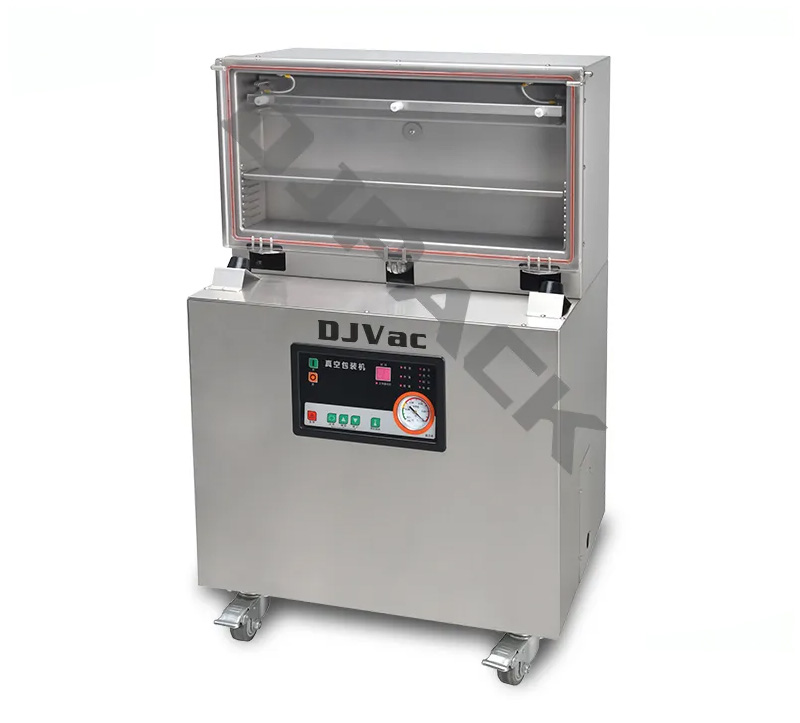

Vertical Type Vacuum Packaging Machine

DZ-600L Vertical Type Vacuum Packaging Machines Series constructed of high-quality stainless steel. It's suitable for vacuum-packed in vertically standing pouches. It's easy to operate, clean, and maintain. A gas flushing function is an option.

Chamber Dimensions(mm):

620×100×300

Sealer Dimension(mm):

600×8

Production Cycle(times/min):

1-2

Select variant:

DZ-500L DZ-600L DZ-630L

Get a quote

Download

Description
Technical characters
Technology specifications
Inquiry

Description

Technical characters

Control System: The PLC control panel provides several control modes for user's selection. 2.Material of Main Structure: 304 stainless steel.
"V" Lid Gasket: The shape vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the machine in routine work. The compression and wearing resistance of the material extends the service life of the lid gasket and reduce its changing frequency.
Heavy Duty Casters (With Brake): The heavy duty casters of the machine features superior load bearing performance, so that the user may move the machine with ease.
Electrical requirement and plug could be custom according to customer requirement.
Gas flushing is optional.

Technology specifications

Model	DZ-600L

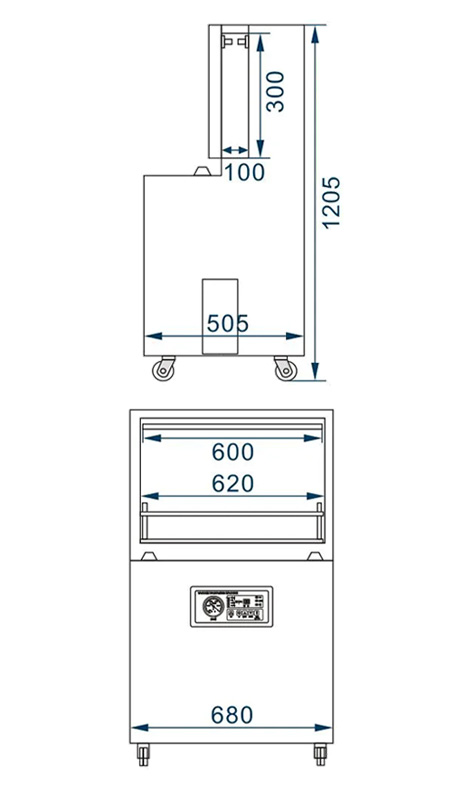

Machine Dimensions(mm)	680 × 505 × 1205
Chamber Dimensions(mm)	620 × 100 × 300
Sealer Dimensions(mm)	600 × 8
Vacuum Pump(m3/h)	20
Power Consumption(kw)	0.75 / 0.9
Electrical Requirement(v/hz)	220/50
Production Cycle(times/min)	1-2
Net Weight(kg)	81
Gross Weight(kg)	110
Shipping Dimensions(mm)	740 × 580 × 1390
