DJL-370G/V is an automatic MAP TRAY SEALER. It uses vacuum pump to suck the air out completely form the vacuum chamber, then fill the protective gas mix, which is suitable for keeping food fresh.

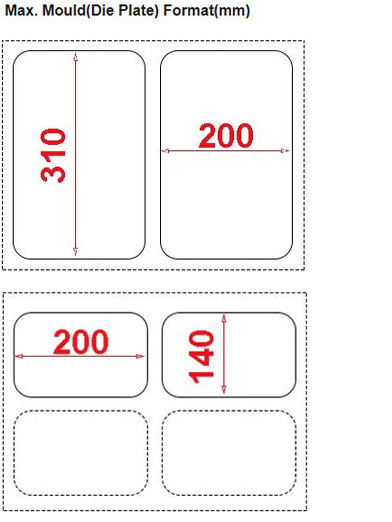

Max. Tray Dimension(mm)(1X2):
310×200×60
Max. Width of Film(mm):
370
Max. Diameter of Film(mm):
220
DJL-370G/V is an automatic MAP TRAY SEALER. It uses vacuum pump to suck the air out completely form the vacuum chamber, then fill the protective gas mix, which is suitable for keeping food fresh. With the same pressure outside and inside of the vacuum chamber it starts sealing. Modified Atmosphere highly exchanged. Meanwhile, gas mixer assures the atmosphere strictly mixed. Supply chain efficiencies: Put the filled tray into the mould and turn the start button on, the mould moves into the vacuum chamber, vacuum suction, gas flushed, sealing, film cutting, the mould moves out automatically. (Tray goes upward after the mould moves out, the speed of upward can be adjusted. )
| Model | DJL-370G | DJL-370V |
| Packaging Tray Dimension(mm) | 310×200×60(1X2) | 310×200×60(1X2) |
| Max Width of Film(mm) | 370 | 370 |
| Max Diameter of Film(mm) | 220 | 220 |
| Packaging Speed (time/min) | 5-6 | 3-4 |
| Electrical Requirement | 380V / 50HZ | 380V / 50HZ |
| Working Pressure(mpa) | 0.6-0.8 | 0.6-0.8 |
| Consume Power(kw) | 2.4KW | 3.5KW |
| Pump | 63M3/H | |
| Air Exchanging Rate(%) | 99 | 99% |
| Air Filling Concise(%) | ≤ 2 | 2% |
| Machine Weight(kg) | 170 | 265 |
| Machine Size(mm) | 1080×980×1430 | 1080×980×1430 |
