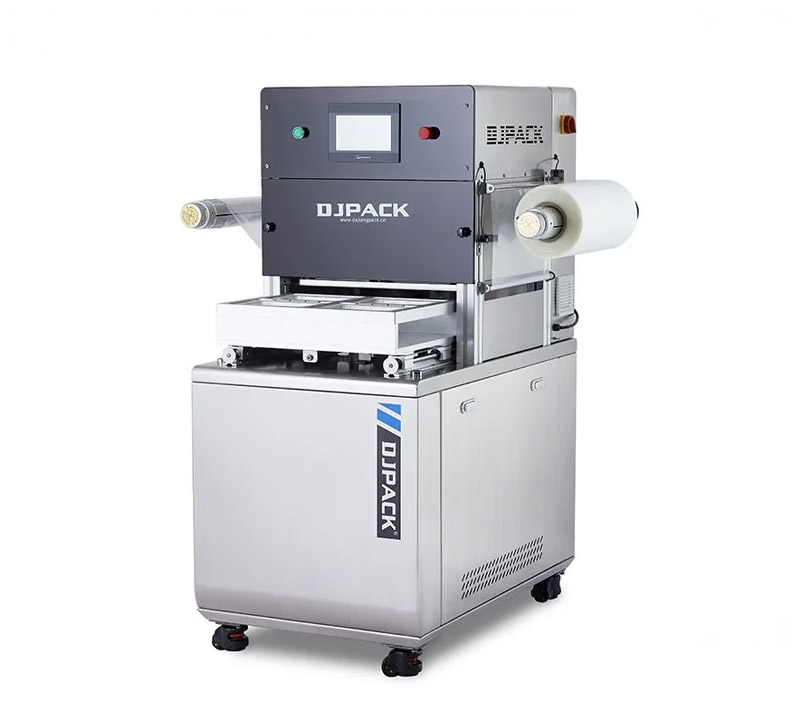

Map Tray Sealer is widely applicable to the package of raw and cooked meat, seafood, dairy product, fruit and vegetable, rice and flour food. Modified atmosphere packaging machine features quality assurance, keeping fresh, color retention, complexion preservation and taste retention.
Max. Tray Dimension(mm)(×4):
490×330×60
Max. Width of Film(mm):
390
Max. Diameter of Film(mm):
220
Map Tray Sealer is widely applicable to the package of raw and cooked meat, seafood, dairy product, fruit and vegetable, rice and flour food. Modified atmosphere packaging machine features quality assurance, keeping fresh, color retention, complexion preservation and taste retention. In addition, the machine needs to be equipped with an air compressor and gas pressure reducing valves.

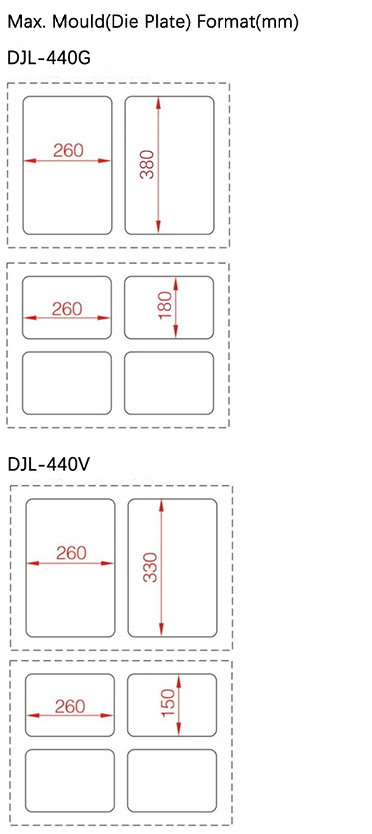

| Model | DJL-440G | DJL-440V |
| Max. Tray Dimension | 260×180×60(mm) (×4) | 490×330×60(mm) (×4) |
| Max. Width of Film | 440 (mm) | 390 (mm) |
| Max. Diameter of Film | 260(mm) | 220(mm) |
| Packing Speed | 5-6(cycle/min) | 2-3(cycle/min) |
| Electrical Requirement | 380V/50Hz (Voltage can be customized) | 380V/50Hz (Voltage can be customized) |
| Consume Power | 2.8(kW) | 3.5(kW) |
| Net Weight | 260(kg) | 350(kg) |
| Gross Weight | 344(kg) | 410(kg) |
| Machine Dimension | 1200×1170×1480(mm) | 1200×1050×1500(mm) |
| Shipping Dimension | 1280×1230×1650(mm) | 1300×1150×1170(mm) |
Special packaging customization
Vacuum film material customization
Function Extension Service
Equipment cooperative optimization
