DZ-500T

Single Seal Table Top Vacuum Machine

Popular single seal vacuum package is widely used in our life. When we will go to the market, we can see vacuum-pack fish, meat, chicken, shrimp, tomato, etc. What’s more. Vacuum packaging products are not just food, we can also find vacuum-pack metal parts, More and more people realize the importance of vacuum package.

Chamber Dimensions(mm):

540×520×200 (150)

Sealer Dimension(mm):

500×8

Production Cycle(times/min):

1-2

Select variant:

DZ-260PD DZ-300PJ DZ-350M DZ-350MS DZ-450A DZ-500T

Get a quote

Download

Description
Technical characters
Technology specifications
Inquiry

Description

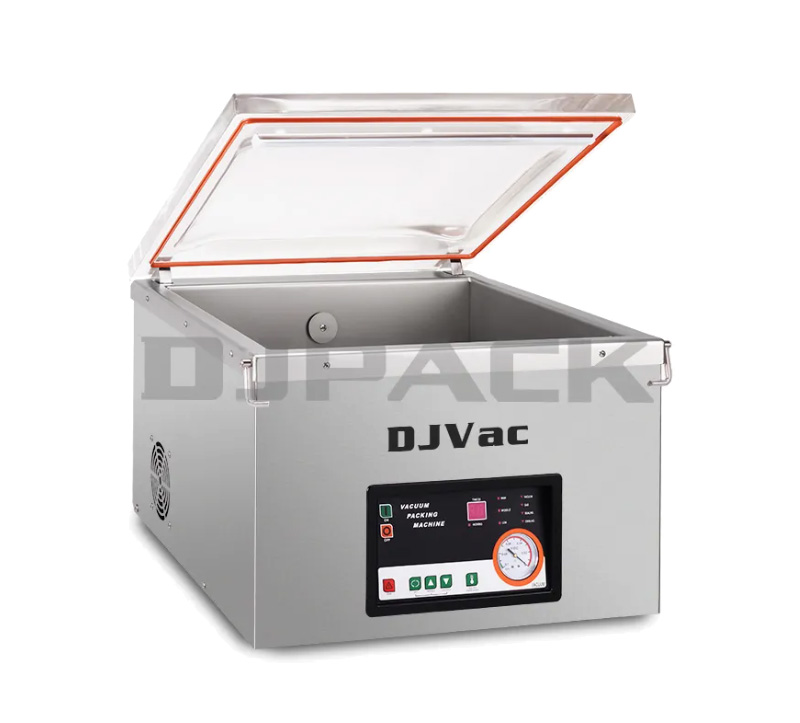

DZ-500T Table Top Vacuum Packaging Machines Series constructed of high-quality stainless steel. It's quick and easy packaging of smaller products, it's easy to operate, clean, and maintain.

Technical characters

Control System: The PC control panel provides several control modes for user selection.
Material of Main Structure: 304 stainless steel.
Hinges on Lid: The special labor-saving hinges on the lid markedly reduce the labor intensity of operators in dally work, so that they handle it with ease.
"V" Lid Gasket: The "V" shaped vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the machine in routine work. The compression and wearing resistance of the material extends the service life of the lid gasket and reduces its changing frequency.
Heavy Duty Casters (With Barke): The heavy-duty casters (with brake) on the machine features superior load-bearing performance, so that the user may move the machine with ease.
Electrical requirements and plugs could be custom according to customer requirements.

Technology specifications

Model	DZ-500T

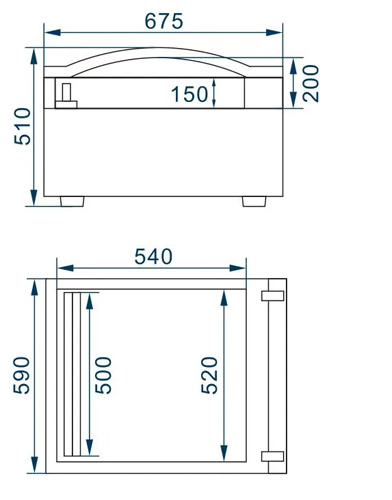

Machine Dimensions(mm)	675 × 590 × 510
Chamber Dimensions(mm)	540 × 520 × 200(150)
Sealer Dimensions(mm)	500 × 8
Vacuum Pump(m3/h)	20
Power Consumption(kw)	0.75
Electrical Requirement(v/hz)	220/50
Production Cycle(times/min)	1-2
Net Weight(kg)	87
Gross Weight(kg)	106
Shipping Dimensions(mm)	750 × 660 × 560

Perhaps you have other needs?

In order to ensure that the production fully meets your needs, we also offer a professional packaging customization service

Special packaging customization

Vacuum film material customization

Function Extension Service

Equipment cooperative optimization
