Economical Floor-Standing Vacuum Packaging Machine

DZ-500B

Economical Floor-Standing Vacuum Packaging Machine

The economical floor standing packaging machine, vacuum packaging machine produced by Wenzhou Dajiang, has made a lot of improvements and optimizations on the original technical basis, and is in a leading position in the market in terms of product appearance and internal quality. Our first developed vacuum lid hinge device reduces the labor intensity of operators.

Chamber Dimensions(mm):

600×500×150 (90)

Sealer Dimension(mm):

480×8×2

Production Cycle(times/min):

1-2

Select variant:

DZ-400/2E DZ-400CD DZ-500B DZ-460/2G DZ-500/2G DZ-600/2G DZ-700/2ES

Get a quote

Download

Description
Technical characters
Technology specifications
Inquiry

Description

DZ-500B Floor Type Vacuum Packaging Machines Series constructed of high-quality stainless steel. It's easy to operate, clean and maintains. A gas flushing function is an option.

Technical characters

Control System: The PC control panel provides several control modes for user selection.
Material of Main Structure: 304 stainless steel.
Hinges on Lid: The special labor-saving hinges on the lid markedly reduce the labor intensity of operators in dally work, so that they handle it with ease.
"V" Lid Gasket: The "V" shaped vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the machine in routine work. The compression and wearing resistance of the material extends the service life of the lid gasket and reduces its changing frequency.
Heavy Duty Casters (With Barke): The heavy-duty casters (with brake) on the machine features superior load-bearing performance, so that the user may move the machine with ease.
Electrical requirements and plug could be custom according to customer requirements.

Technology specifications

Model	DZ-500B

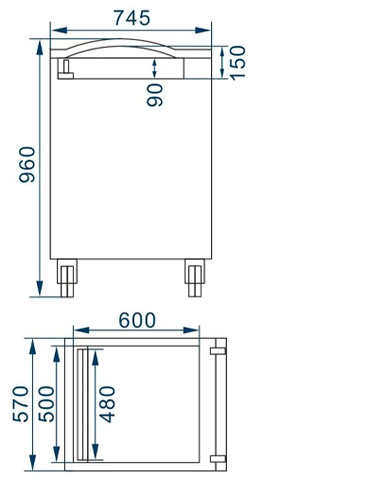

Machine Dimensions(mm)	960 x 745 x 570
Chamber Dimensions(mm)	600 x 500 x 150 (90)
Sealer Dimensions(mm)	480 x 8 x 2
Vacuum Pump(m3/h)	20
Power Consumption(kw)	0.75
Electrical Requirement(v/hz)	220/50
Production Cycle(times/min)	1-2
Net Weight(kg)	98
Shipping Dimensions(mm)	800 × 640 × 1120
