Automatic Continuous Type Vacuum Packaging Machine

DZ-1000QF

Automatic Continuous Type Vacuum Packaging Machine

The Automatic Continuous Type Vacuum Packaging Machine uses a cylinder to drive the conveyor track to rotate continuously, suitable for product packaging in large-scale production enterprises. It can set one or two seals in the vacuum chamber according to different specifications of the packaging material to improve work efficiency. The angle of the equipment workbench can be adjusted according to the packaging requirements of the packaging materials.

Chamber Dimension(mm):

385×1040×80

Sealer Dimension(mm):

1000×8×2

Pump Capacity(m3/h):

100/200

Select variant:

DZ-1000QF

Get a quote

Download

Description
Technical characters
Technology specifications
Inquiry

Description

DZ-1000QF automatic continuous type vacuum packaging machine continuously operates through the cylinder drive the rotation of the conveyor belt and applies to the product packaging of large productive enterprises. Depending on the different sizes of the contents, one or two sealers could be set within one vacuum chamber in order to improve the working efficiency. The workbench angle could be adjusted according to the features of the contents.

Technical characters

Control System: OMRON PLC programmable control system and human-computer interface touch screen.
Material of Main Structure: 304 stainless steel.
"V" Lid Gasket: The "V" shaped vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the machine in routine work. The compression and wearing resistance of the material extends the service life of the lid gasket and reduces its changing frequency.
Conveyor Belt: Dismountable conveyor belt is convenient for cleaning the machine.
Eversible Lid: The eversible lid is convenient for the maintenance person to replace the components inside the lid easily.
Heavy Duty Casters (With Brake): The heavy-duty casters (with brake) on the machine feature superior load bearing performance, so that the user may move the machine with ease.
Electrical requirements and plugs could be custom according to customer requirements.

Technology specifications

Model	DZ-1000QF

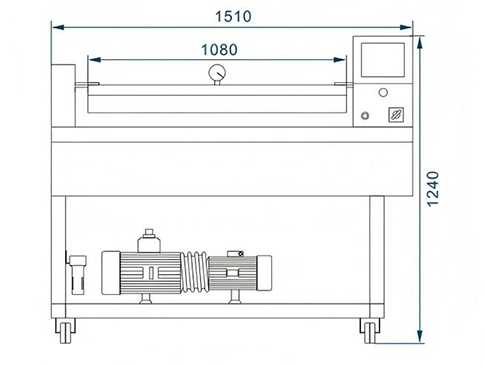

Machine Dimensions(mm)	1510 × 1410 × 1280
Chamber Dimension (mm)	385 × 1040 × 80
Sealer Dimension (mm)	1000 × 8 × 2
Pump Capacity(m3/h)	100/200
Power Consumption(kw)	3
Voltage(V)	220/380/415
Frequency(Hz)	50/60
Production Cycle(times/min)	2-3
G.W(kg)	555
N.W(kg)	447
Shipping Dimensions(mm)	1580 × 1530 × 1420
