Double Seal Table Top Vacuum Machine

The double sealed model has double sealing strips, which can maximize the use of the entire vacuum chamber area, making it a very cost-effective machine.

Sealer Dimension(mm):

420-430

Production Cycle(times/min):

1-2

Select variant:

DZ-400/2F DZ-430PT/2

Get a quote

Download

Description
Technical characters
Technology specifications
Inquiry

Description

The double sealed model has double sealing strips, which can maximize the use of the entire vacuum chamber area, making it a very cost-effective machine.

Technical characters

Control System: The PC control panel provides several control modes for user selection.
Material of Main Structure: 304 stainless steel.
Hinges on Lid: The special labor-saving hinges on the lid markedly reduce the labor intensity of operators in dally work, so that they handle it with ease.
"V" Lid Gasket: The "V" shaped vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the machine in routine work. The compression and wearing resistance of the material extends the service life of the lid gasket and reduces its changing frequency.
Heavy Duty Casters (With Barke): The heavy-duty casters (with brake) on the machine features superior load-bearing performance, so that the user may move the machine with ease.
Electrical requirements and plugs could be custom according to customer requirements.

Technology specifications

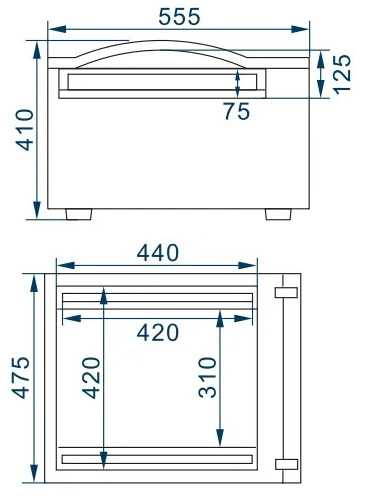

Model	DZ-400/2F
Machine Dimensions(mm)	555 × 475 × 410
Chamber Dimensions(mm)	440 × 420 × 125(75)
Sealer Dimensions(mm)	420 × 8
Vacuum Pump(m3/h)	20
Power Consumption(kw)	0.9
Electrical Requirement(v/hz)	220/50
Production Cycle(times/min)	1-2
Net Weight(kg)	59
Gross Weight(kg)	68
Shipping Dimensions(mm)	610 × 530 × 460

Perhaps you have other needs?

In order to ensure that the production fully meets your needs, we also offer a professional packaging customization service

Special packaging customization

Vacuum film material customization

Function Extension Service

Equipment cooperative optimization
