Cost-effective floor-type vacuum packaging machine

DZ-400/2SF

Cost-Effective Floor-Type Vacuum Packaging Machine

High cost-effective floor standing vacuum packaging machine, this double chamber floor standing vacuum packaging machine has a 20 * 2 vacuum pump, and the integrated vacuum packaging machine is a model developed based on the single chamber floor standing vacuum packaging machine. This model utilizes two vacuum chambers to work simultaneously or alternately, thereby improving work efficiency.

Chamber Dimension(mm):

940×620×200

Sealer Dimension(mm):

480×8 / 800×8

Production Cycle(times/min):

1-2

Select variant:

DZ-400/2SF

Get a quote

Download

Description
Technical characters
Technology specifications
Inquiry

Description

DZ-400/2SF Double Chamber Vacuum Packaging Machines Series constructed of high-quality stainless steel. It's easy to operate, clean, and maintain. A gas flushing function is an option.

Technical characters

Control System: The PC control panel provides several control modes for user selection.
Material of Main Structure: 304 stainless steel.
Hinges on Lid: The special labor-saving hinges on the lid markedly reduce the labor intensity of operators in dally work, so that they handle it with ease.
"V" Lid Gasket: The "V" shaped vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the machine in routine work. The compression and wearing resistance of the material extends the service life of the lid gasket and reduces its changing frequency.
Heavy Duty Casters (With Barke): The heavy-duty casters (with brake) on the machine features superior load-bearing performance, so that the user may move the machine with ease.
Electrical requirements and plugs could be custom according to customer requirements.

Technology specifications

Model	DZ-400/2SF

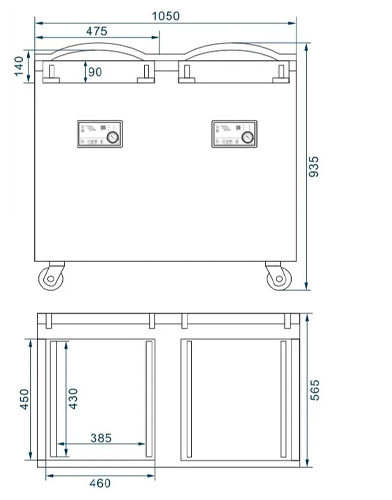

Machine Dimension(mm)	1050 × 565 × 935
Chamber Dimension(mm)	450 × 460 ×140(90)
Sealer Dimension(mm)	430 × 8 × 2
Pump Capacity(m3/h)	20 × 2
Power Consumption(kw)	0.75 × 2
Voltage(V)	110/220/240
Frequency(Hz)	50/60
Production Cycle(times/min)	1-2
G.W(kg)	191
N.W(kg)	153
Shipping Dimensions(mm)	1140 × 620 × 1090
